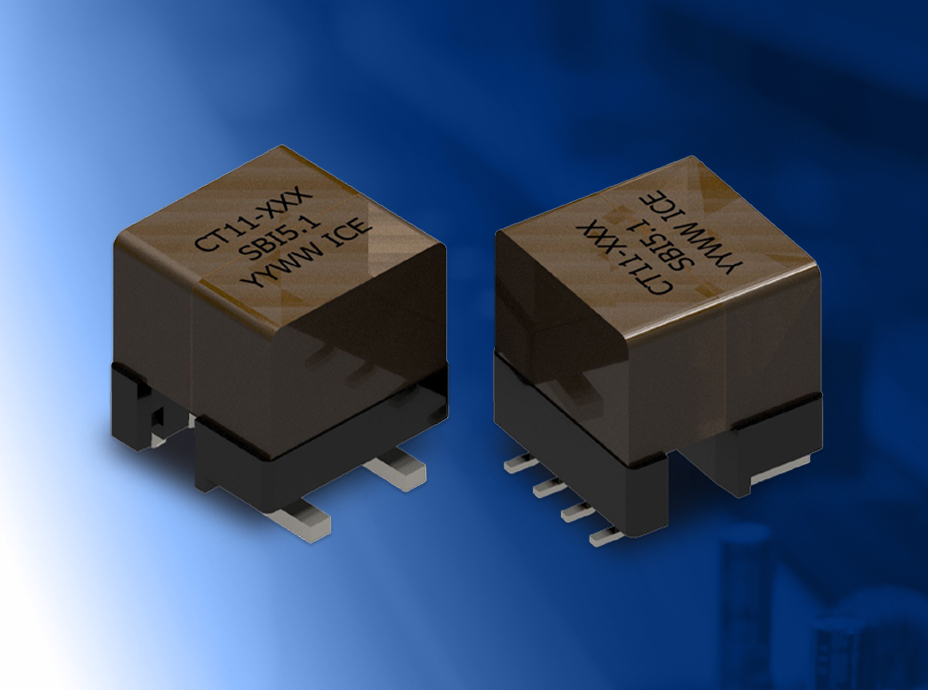

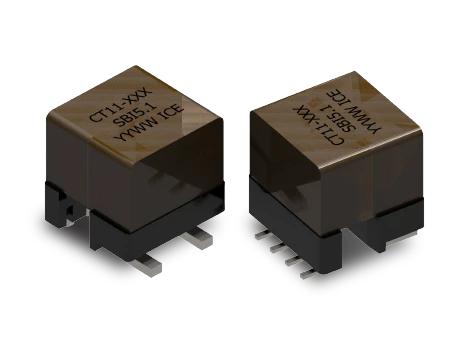

ICE Components presents the CT11 Series — a high-isolation current sense transformer line designed for precise current measurement in modern power systems. Developed to comply with updated IEC safety standards, the CT11 Series combines robust insulation with wide frequency capability, enabling reliable performance across both switching and line-frequency applications. With support for up to 30 A current sensing, 3000 V_AC isolation, and flexible turns ratios from 1:50 to 1:200, the CT11 Series integrates easily into DC/DC, AC/DC, and control architectures. It provides a dependable solution for engineers seeking accurate current monitoring alongside compliance with evolving global safety requirements.

Technical Highlights:

• Isolation voltage: 3000 V_AC
• Current rating: Up to 30 A
• Frequency range: 200 Hz to 1 MHz
• ET product: Up to 1627 V-µs
• Turns ratios: 1:50 to 1:200
• Operating temperature: -40°C to +130°C

IEC Compliance Ready & Safety Design:

The CT11 Series is designed around key IEC safety requirements, helping simplify system qualification: Design to Comply with:

• IEC 61558-1: Working voltages up to 530 V_RMS for basic insulation and 265 V_RMS for reinforced insulation.
• IEC 62368-1: Working voltages up to 530 V_RMS / 2.31 kV_PEAK for basic insulation and 265 V_RMS / 1.88 kV_PEAK for reinforced insulation.

Insulation System & Construction:

• Insulation System: SBI5.1 (Class F)
• Creepage Distance: 5.3 mm
• Material Group: CTI IIIa

Defined Operating Conditions:

• Overvoltage Category II
• Pollution Degree 2

Why CT11?

The CT11 Series provides a practical solution for engineers needing:

• High-accuracy current sensing
• Strong isolation performance
• Alignment with updated IEC standards

All in a compact, application-ready package.

Availability and Odering:

CT11 Series current sense transformers are available now in tape-and-reel packaging. Custom turns ratios, ET ratings, and special winding configurations can be quoted upon request.  For samples, pricing, or technical support, contact ICE Components Customer Service at cs@icecomp.com or +1 678 560 9172. For more information about the product, please visit the CT11 Series page. Contact: Rhodah Syombua engr@icecomp.com  ...

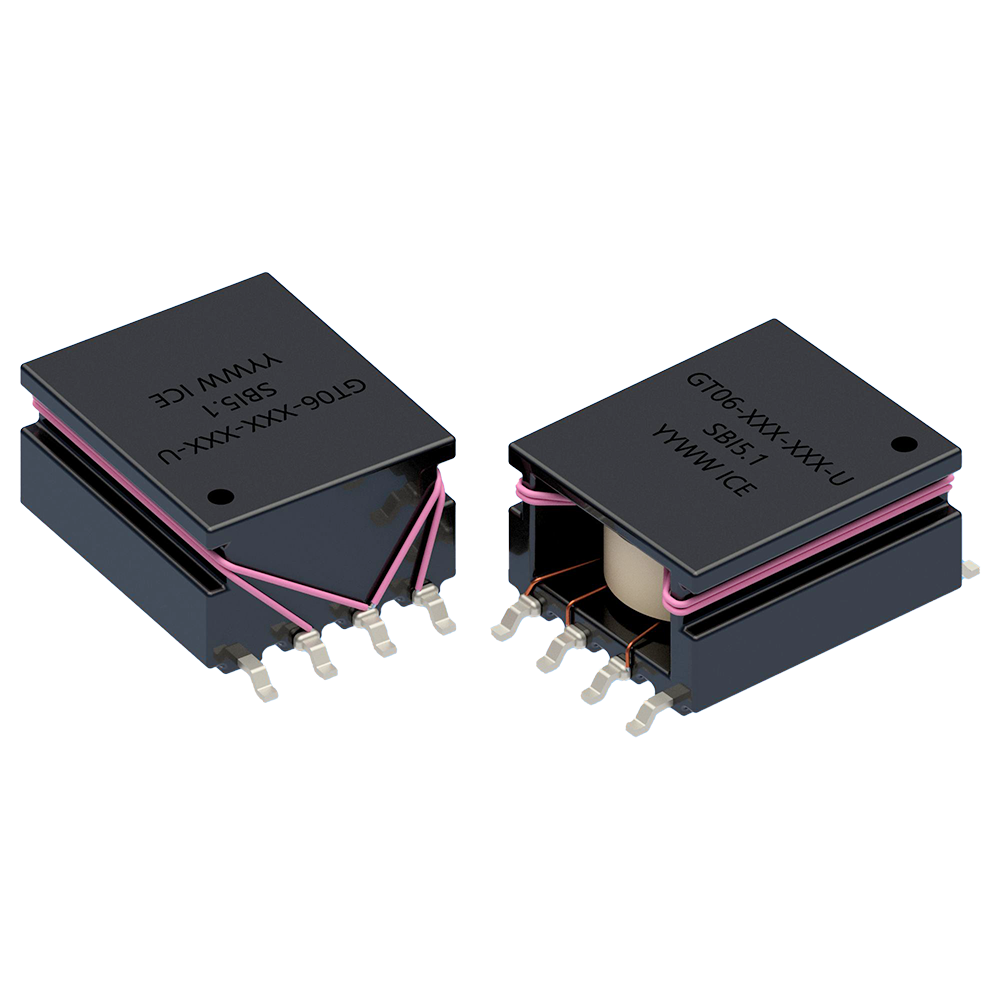

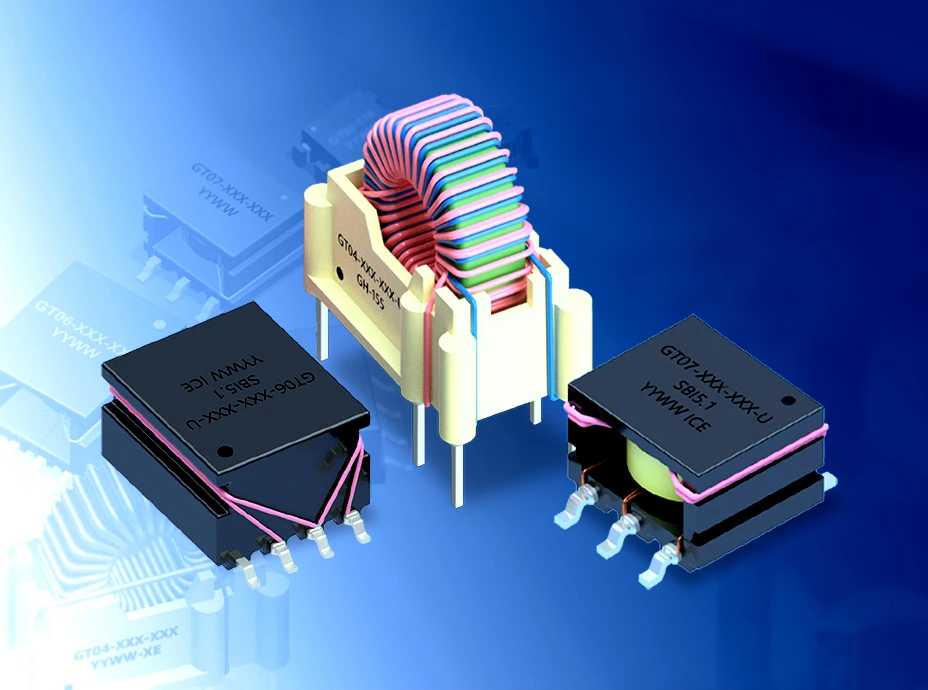

ICE Components is expanding its IEC-compliant gate drive transformer lineup with three new GTXX-U models: GT04-U, GT06-U, and GT07-U. Created to meet updated IEC standards and reflect recent changes in the most popular safety requirements, these new models align with evolving expectations for reinforced insulation while continuing to support modern DC/DC and AC/DC power architectures. The GTXX-U models deliver high isolation performance and low leakage inductance, with THT and SMT package options suitable for automated, high-volume assembly. With scalable options across power levels, footprints, and assembly preferences, these updated series are positioned to give designers flexibility in selecting the optimal balance of isolation margin, ET capability, and board utilization—without compromising safety or reliability.

Key Features and Benefits:

• Wide switching-frequency support for modern DC/DC and AC/DC converter designs
• Reinforced isolation (hi-pot/creepage): Up to 4500 V_AC/12.5 mm
• ET Product Ratings: Up to 251 V·µs
• Low leakage inductance for faster switching and reduced EMI
• Safety ratings: UL 94 V-0; UL Class B / Class F Insulation System
• Standards compliance: Updated to meet recent revisions to IEC 61558-1 and IEC 62368-1
• Reinforced working voltage: Up to 867 V_RMS
• Qualified for reliability per ICE Components’ internal test standards

Typical Applications:

• DC/DC converter gate drives in telecom and data center power modules
• AC/DC power supply isolation barriers
• Signal transformers across galvanic isolation boundaries
• Motor driver and inverter gate-drive circuits
• Renewable energy inverters and battery-storage converters



Launching in just a few days — Stay tuned!

These new products will be posted in these series pages:

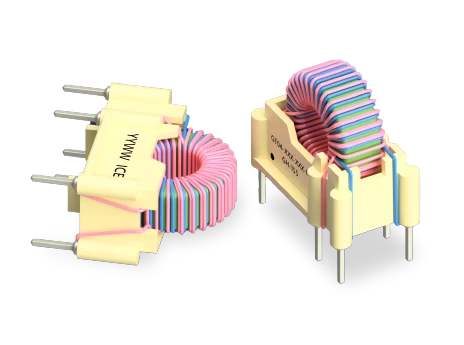

• GT04 Series - High-Isolation THT Gate Drive Transformers

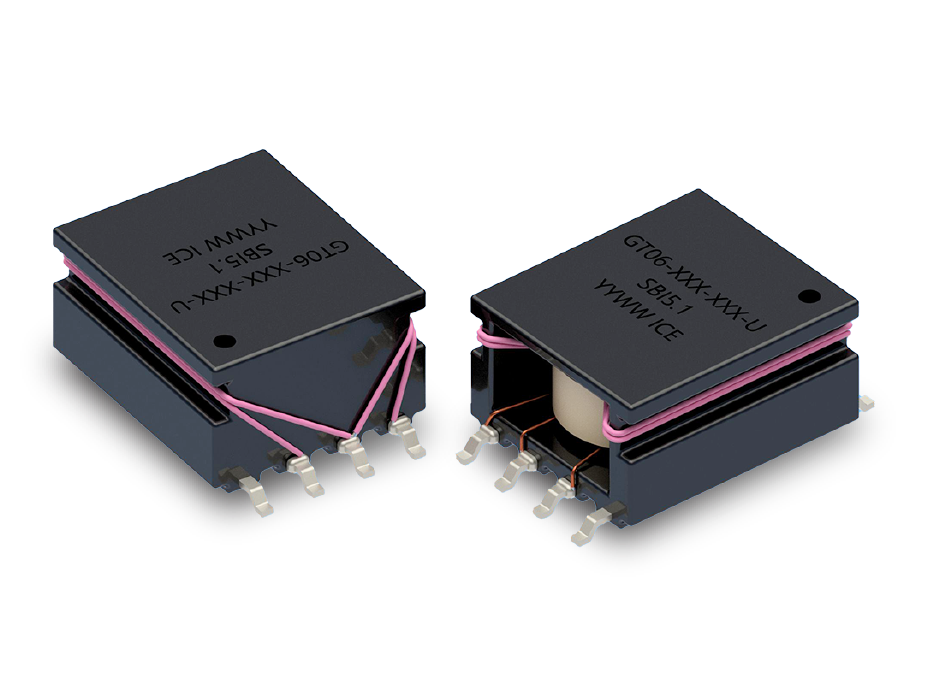

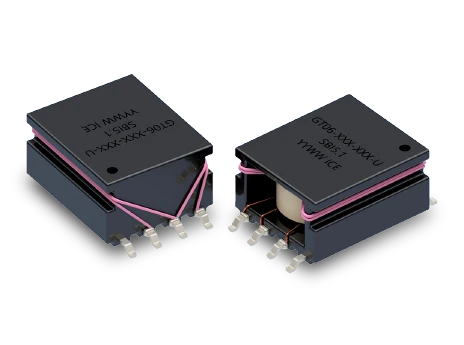

• GT06 Series - AEC-Q200 Qualified SMT Gate Drive Transformers

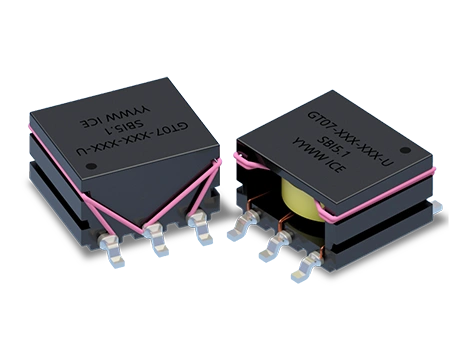

• GT07 Series - High-Creepage SMT Gate Drive Transformers

  For inquiries, please contact: Rhodah Syombua engr@icecomp.com  ...

Understanding Ferrite Inductors in Class D Amplifier Design: Class D audio amplifiers continue to grow in popularity, powering everything from portable Bluetooth speakers to high-performance home audio systems. Their appeal is clear: they’re efficient, compact, and capable of delivering impressive sound. But behind every great Class D amplifier is one small component that plays a big role — the output inductor. Our latest application note introduces designers to how ferrite-based inductors fit into the Class D signal path and why they matter. Whether you’re new to Class D technology or simply exploring ways to get better audio performance, this guide offers a friendly, approachable overview of the fundamentals.

---

Why Focus on the Output Inductor?

In a Class D amplifier, the output inductor helps turn the amplifier’s high-frequency switching signal into clean, listenable audio. While that function sounds simple, choosing the right inductor can influence:

• Sound quality
• Power efficiency
• Thermal performance
• EMI behavior

Our application note walks through these ideas in a clear and accessible way — no heavy equations required.

---

What You’ll Learn in the Application Note

The document gives readers a practical look at:

• The role of ferrite materials in audio designs
• How inductors help maintain clean, stable audio output
• What matters most when selecting an inductor for a Class D amplifier
• A real-world example using a popular 150 W design

It’s a great starting point for engineers, product designers, and anyone who wants to understand the building blocks behind modern audio systems.

---

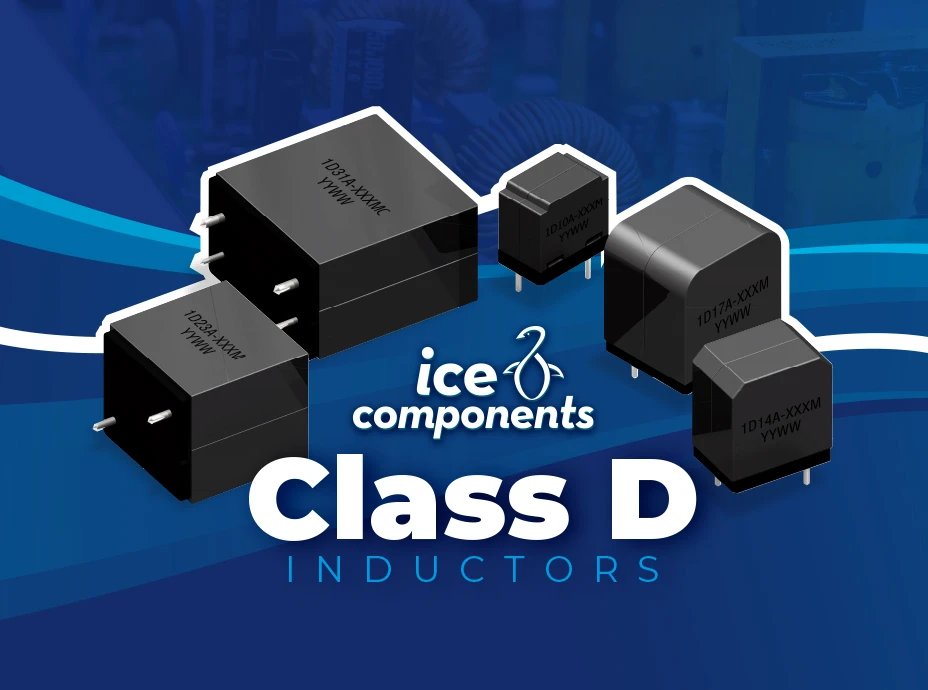

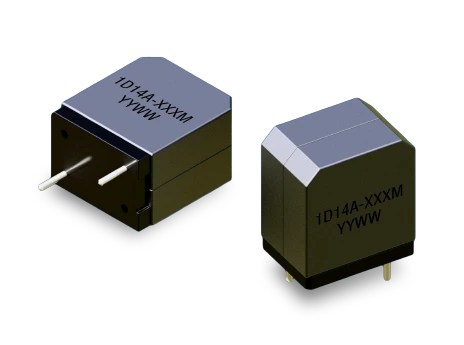

The 1D Series: Designed for Class D Amplifiers

The application note also introduces our 1D Series inductors, created specifically for Class D audio applications. With compact form factors, high reliability, and materials optimized for switching-audio performance, the series gives designers a simple, dependable building block for new and existing projects.

---

Download the Full Application Note

If you're looking for a straightforward, helpful introduction to output inductors in Class D amplifiers, this application note is a great place to begin. Download: Applying Ferrite-Based Inductors in the Design of Class D Amplifiers Go to Application Notes page.  ...

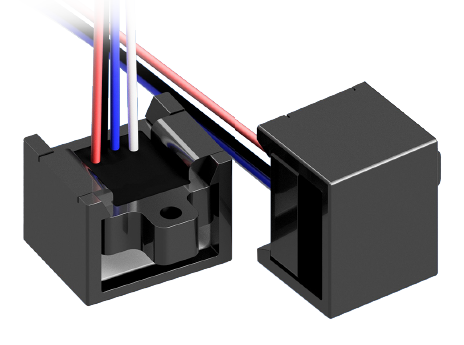

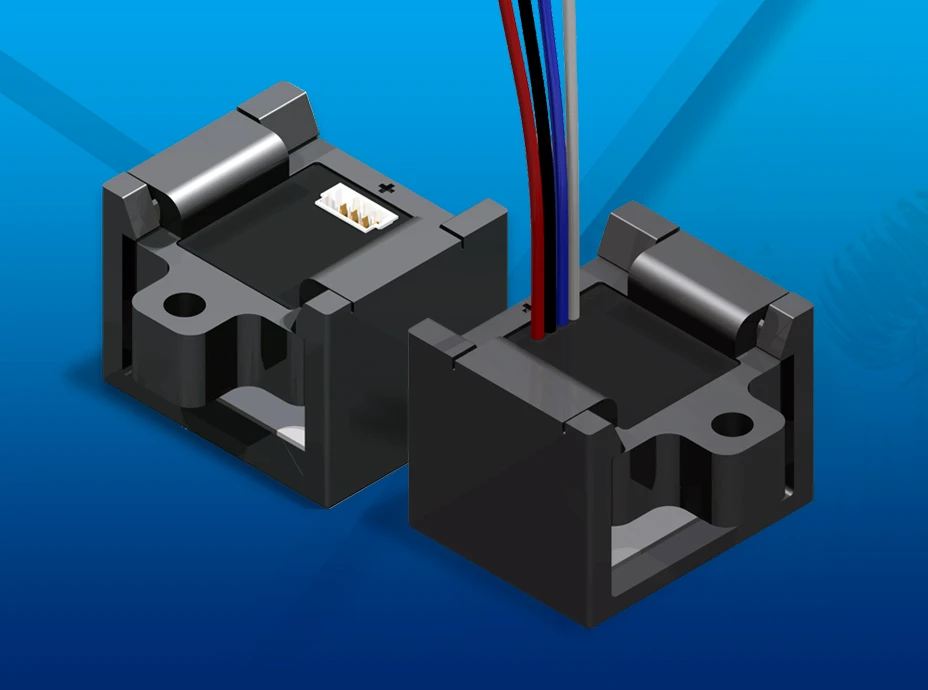

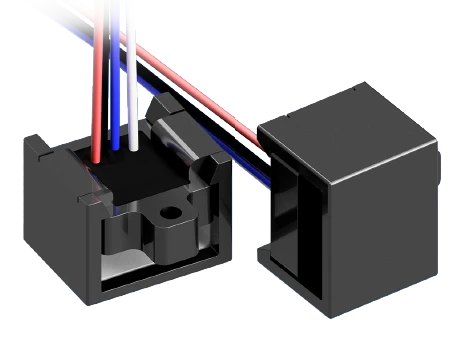

Need a better way to sense current on busbars? Let's revisit the ISB Series Current Sense Transducer. This compact sensor is a smart alternative to bulky, traditional sensors. It delivers high performance with fast response and high bandwidth. A custom ASIC-based Hall effect device powers the ISB series. It operates without a traditional core and winding. This core-less design is the key to provide a lower-cost solution. It delivers fast response, high bandwidth, high isolation, and performance sitting between open-loop and closed-loop designs. It's designed for currents from 75 A up to over 670 A and is easy to install in applications with tight dimensional constraints.

Key Design Features You Can Leverage

Our ISB Series App Note (ISB-AN1-R1) details the ISB’s smart features. These features solve common engineering challenges.

• Concentrates Magnetic Flux: The shield provides a path of lower magnetic resistance. This concentrates the magnetic flux density. This helps the sensor measure low current levels.
• Protects from EMI: The shield also helps protect the sensor from stray EMI fields from adjacent high-current paths.

Total Design Flexibility

The ISB series is built for easy integration:

• Connection Options: Choose between a compact header connector (8.5 mm creepage) or a lead-wire version (158.5 mm creepage) for much higher isolation.
• Programmable Ranges: We can factory program custom current ranges. This includes unsymmetrical ranges (e.g., -100 A to +300 A).
• Simplified Integration: A reference output is available, providing a stable voltage at 50% of V_DD to simplify driving an op-amp circuit.

  For a full technical deep dive on these features, busbar sizing, and more, be sure to check out our Application Note (ISB-AN1-R1).  ...

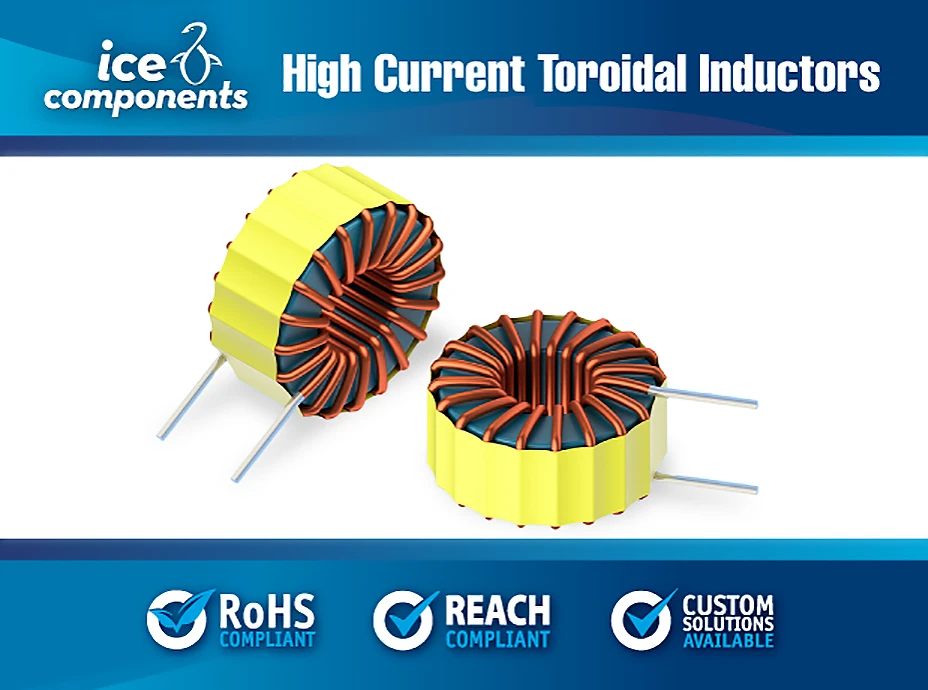

[Marietta, GA] – ICE Components, Inc., a leading global manufacturer of power electronic components, today announced the availability of its new ITP Series of High Current Toroidal Inductors.  This series is designed to meet the rigorous demands of high-current power applications, offering exceptional performance and reliability. The ITP Series inductors are ideal for use in a wide range of applications, including:

• DC/DC converters
• Power supplies
• Inverters
• Renewable energy systems
• Industrial equipment

Key Features and Benefits:

• High Current Handling: The ITP Series is engineered to handle high current levels, making them suitable for demanding power circuits.
• Toroidal Core Construction: Offers superior EMI performance compared to other inductor types.
• Low Core Loss: Improves efficiency and reduces heat generation.
• Compact Size: Provides a space-saving solution for high-density designs.
• RoHS Compliant: Meets environmental regulations.

"We are excited to expand our inductor portfolio with the ITP Series," said Robin Benas, Director of Engineering. "These inductors provide our customers with a high-performance, reliable solution for their most challenging power applications.  The toroidal construction and high current handling capability make them an excellent choice for designs where efficiency and EMI performance are critical."

About ICE Components Inc.

ICE Components, Inc. designs, manufactures, and markets a broad array of components targeting advanced power applications.  With over 35 years of experience, ICE serves a global customer base with offices around the world.  ICE's product lines include transformers, inductors, power supplies, and current sensors.  The company operates manufacturing facilities in the U.S. and Asia. For more information about the product, please visit the ITP Series page. Contact: Rhodah Syombua engr@icecomp.com  ...

ICE Components is excited to announce that we now offer AEC-Q200 qualified components! Our GT06 series is the first to pass these rigorous automotive qualifications, with more series to follow soon. This marks a significant step in our commitment to providing high-quality, reliable components for automotive and other demanding applications. Stay tuned for updates on additional qualified products!

Learn More About GT06 Series

...

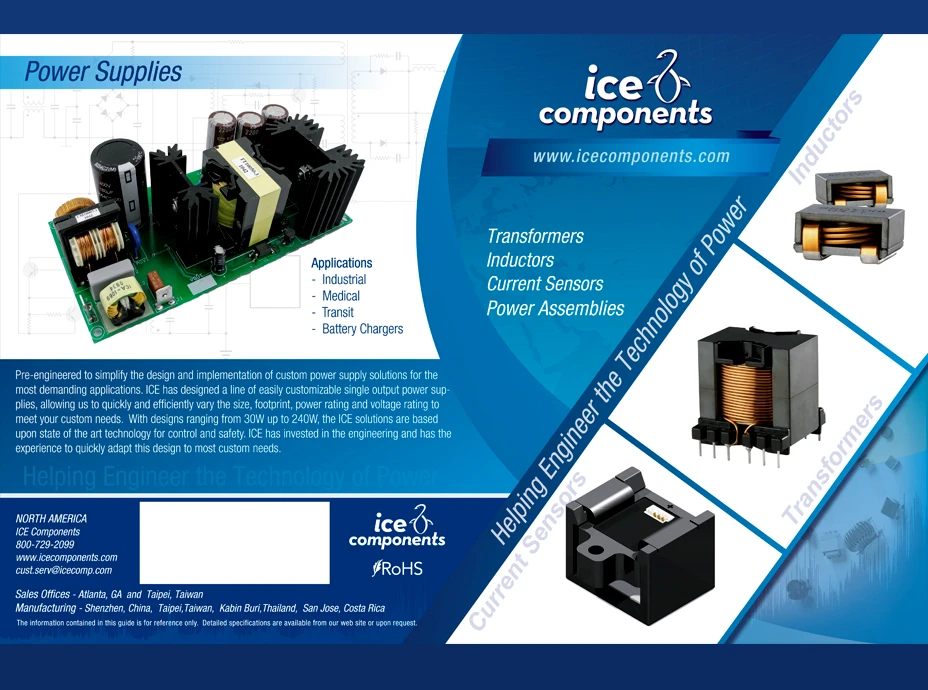

With decades of experience in power electronics, ICE Components delivers proven expertise in magnetic design and custom power solutions. Our capabilities span transformers, inductors, current sensors, and power designs — tailored to meet the demands of today’s high-performance applications. Download our Capabilities Brochure to explore how we can support your next design....

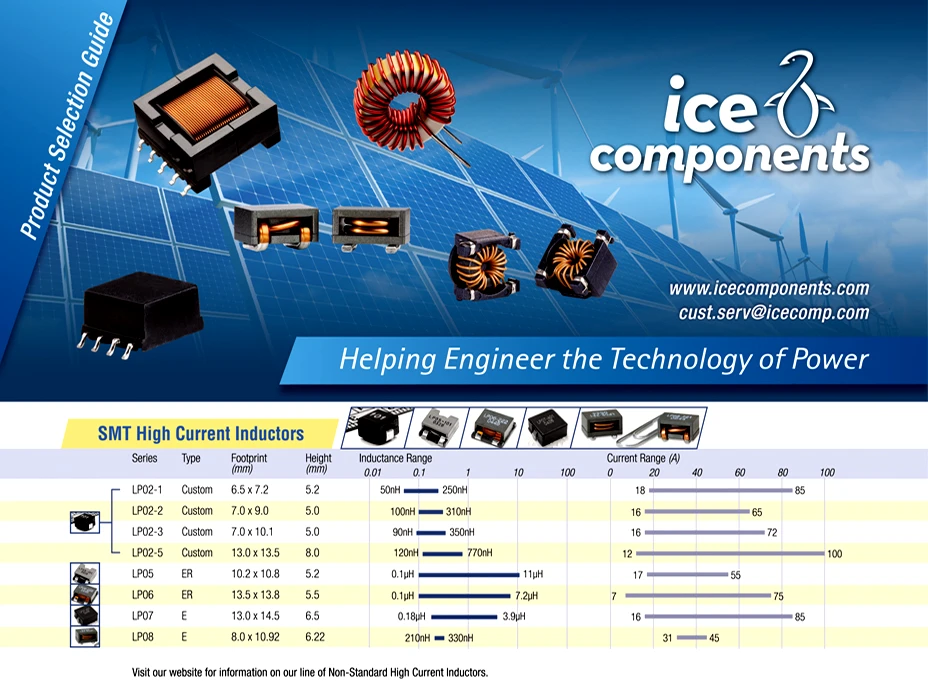

Discover ICE Components’ comprehensive lineup of power magnetics, including gate drive transformers, current sense transformers, high-current inductors, Class D inductors, VRM/VRD inductors, and more. Whether you're designing for precision, efficiency, or high performance, ICE offers innovative current sensing and power design solutions tailored to your needs. Download our Product Selection Guide to explore detailed specifications and find the right components for your next project. ...
