| Part Number | Drive Inductance (μH, Min) | Turns Ratio (Pri:Sec1:Sec2) | DCR (mΩ, Max) | ET Product (V-μs, Max) | Leakage Inductance (nH, Min) | SRF (MHz,Typ) | Hi Pot (Drive:Gate)(Vdc) | Length (mm, Max) | Width (mm, Max) | Height (mm, Max) | Creepage (mm, Min) | Mounting Type | Pick & Place | TI Product Compatibility | Infineon Product Compatibility | Samples Availability | Mouser Availability |
|---|
ICE designs custom power inductors optimized for high-current SMT applications, compact layouts, and efficient switching power systems. Our engineering team can tailor inductance, saturation current, shielding, flat-wire construction, and ultra-low DCR performance to meet specific electrical and thermal requirements.
We support custom magnetically shielded and ultra-low profile designs for VRMs, POL converters, synchronous buck regulators, and high-performance DC-DC power applications — from prototype development through volume production.
Open Request Form

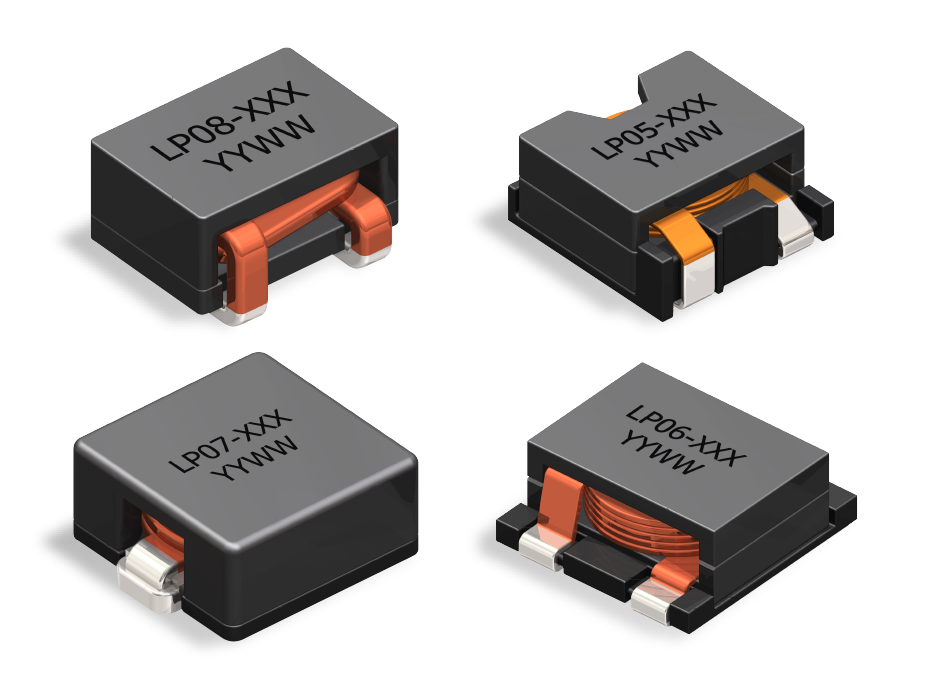

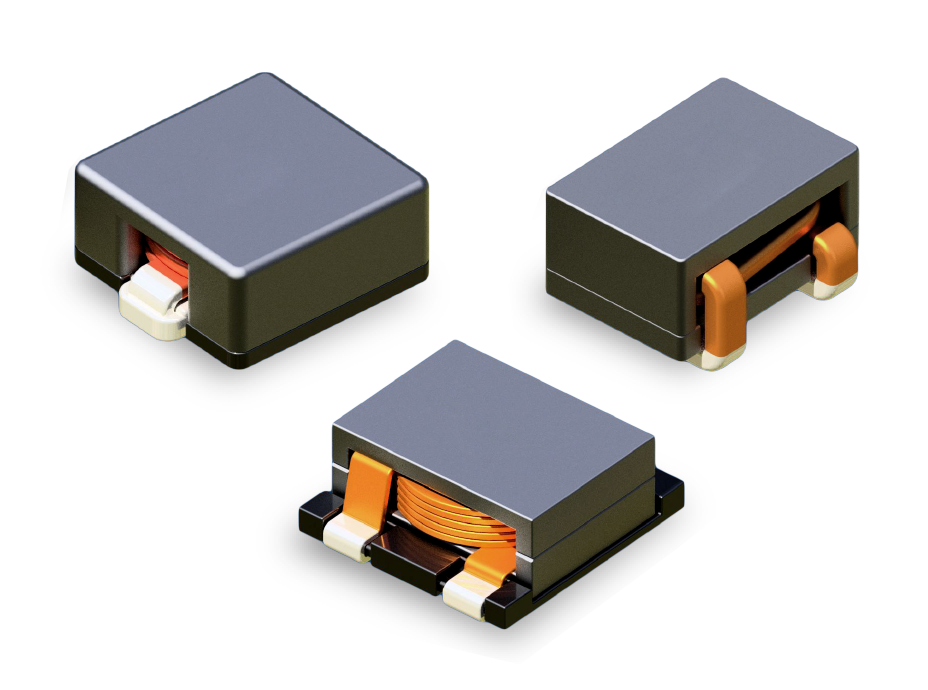

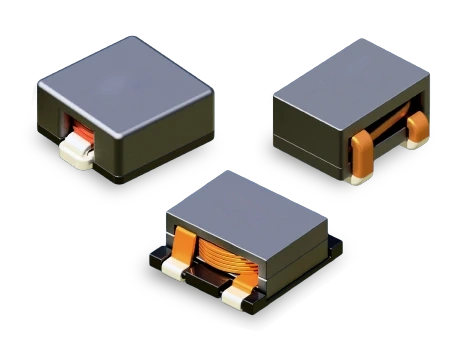

Flat-wire power inductors are high-current inductors that use flat or edge-wound copper conductors instead of traditional round wire windings. This construction helps reduce DC resistance (DCR), improve current handling, and enhance thermal performance in compact SMT power designs.
Edge-wound flat wire construction provides lower DCR, improved current efficiency, better heat dissipation, and reduced AC losses compared to conventional wire-wound inductors, making it suitable for high-current DC-DC converter applications.
These inductors are commonly used in VRMs, POL converters, synchronous buck regulators, server power systems, telecom equipment, industrial electronics, GPUs, CPUs, and other high-density DC-DC power applications.
Low DCR helps minimize conduction losses, improve power efficiency, reduce heat generation, and support higher current operation in switching regulator circuits.
Yes. ICE flat-wire power inductors are designed for reliable operation across typical SMPS switching-frequency ranges and are optimized for efficient high-current power conversion.
Yes. ICE offers low-profile surface-mount flat-wire inductors designed for space-constrained PCB layouts and high-density electronic systems.
Yes. Many ICE flat-wire power inductors feature magnetically shielded constructions to help reduce EMI and improve performance in sensitive electronic applications.
Yes. ICE supports custom flat-wire inductor solutions with tailored inductance values, current ratings, shielding options, dimensions, and thermal characteristics for application-specific requirements.
ICE flat-wire inductors typically use ferrite-based magnetic structures optimized for efficient high-current operation, stable inductance performance, and reduced core losses.
Key selection factors include inductance value, saturation current, RMS current rating, DCR, footprint size, shielding requirements, and operating frequency for the target power design.
Search High-Current Flat-Wire Power Inductors
