Current sensors, also known as current transducers, measure the current flowing through a conductor by monitoring the magnetic flux associated with the conductor. They can measure AC or DC current while providing galvanic isolation between the high-current source and sensor output.

The preferred method is to use a Hall Effect device, a small circuit designed to detect a magnetic field, translate the field strength, and then output a voltage proportional to the current. Two basic types of current sensors incorporate Hall devices: An open or closed-loop system. The advantages of an open loop type are low cost and ease of application.

ICE offers both busbar mount and PCB mount options in current sensors. Both utilize a unique hall effect device that operates parallel to the current flow and are programmable. The advantages to the end user are small packages for the current measured significantly helping reduce overall design size. The ability to program the measurable range maximizes the voltage output resolution.

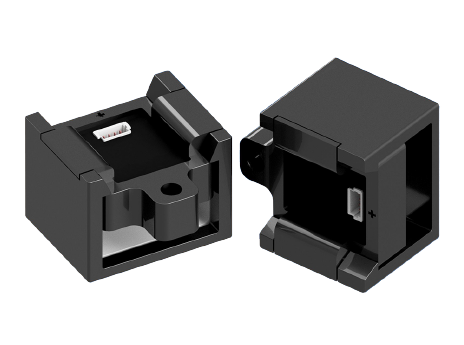

ISB-A-800 series

  • Busbar Mount
  • Connector Type
  • Response Time : 3μs
  • Frequency : 200kHz Max
  • Reference : 50% VDD
  • Current: ± 670A Max

ISB-A-802 series

  • Busbar Mount
  • Lead-Wire Type
  • Response Time : 3μs
  • Frequency : 200kHz Max
  • Reference : 50% VDD
  • Current: ± 670A Max

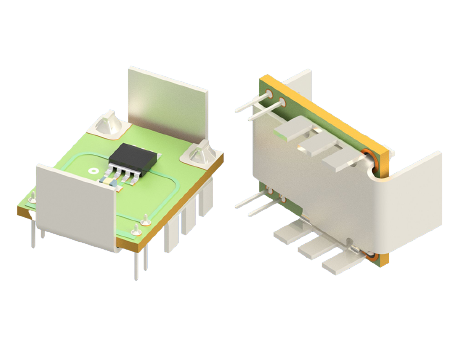

ISE-A-800 series

  • PCB Mount
  • Terminal Pin Type
  • Response Time : 3μs
  • Frequency : 200kHz Max
  • Reference : 50% VDD
  • Current: ± 200A Max

CUSTOM CURRENT SENSORS

Can’t find the part you are looking for? Send us your custom requirements today.
